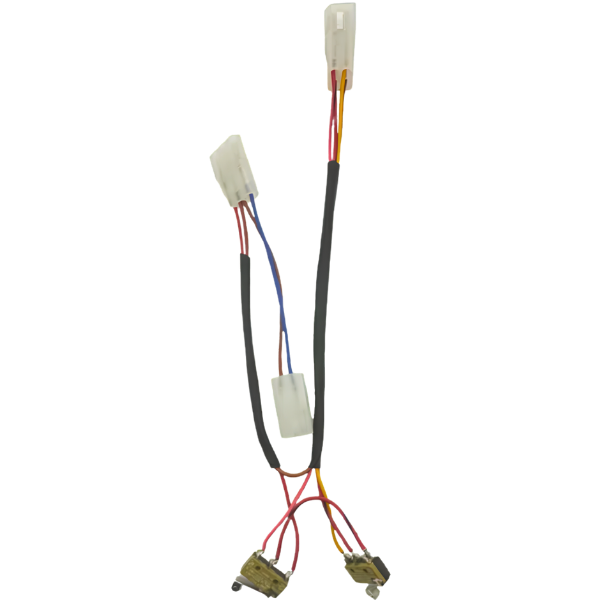

Detention Lock Motor Harness for WLS-1520 Locks

Model: WL-6004
The WL-6004 is a replacement motor wiring harness for WLS-1520 electromechanical detention locks. It is used to restore the internal electrical connection between compatible motor and control components during lock service.
Download Specs
Request Quote
Images may include optional components. Refer to specs for standard configuration.

Technical Overview

The WL-6004 is the model-specific internal harness for the motor circuit in compatible WLS-1520 locks. It provides an organized replacement connection path for the powered drive assembly and related lock wiring.

Compatibility and Service

  • For compatible WLS-1520 lock configurations
  • Replacement internal motor harness
  • Confirm the installed lock model, voltage, connectors and wire routing before ordering
  • Installation and electrical testing should be completed by qualified service personnel

Downloads

Maintenance, Function & Feature Guide
Download
Product Guide
Download

Photo Gallery

These images capture the quality and craftsmanship you can expect in every purchase.

Images may include optional components. Refer to specs for standard configuration.

Compatible Products & Accessories

  • WL-7004

24VDC Motor Assembly for WLS-1520 Locks

  • WL-6009

Detention Lock Motor Roller Switch for WLS-1520 Locks

  • WL-6011

Detention Lock Brake for WLS-1520 Locks

Related Product Options

  • WLS-1520G

Electromechanical Swinging Detention Gate Lock

  • WLS-1520-EUKL

Electric-Unlock, Key-Relock Detention Lock

  • WLS-1520

8-Inch Jamb-Mounted Electromechanical Detention Lock

  • ASTM F1450 Certified, ASTM F1577 Certified, UL 1034 Listed, UL 10C Listed

Specifications

  • Model
  • WL-6004
  • Category
  • Parts

Warning: This product can expose you to chemicals including carbon black, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Request a Quote

Tell us about your project, application, or replacement needs. Our team will review your request and help identify the appropriate product configuration, technical information, and next steps.
