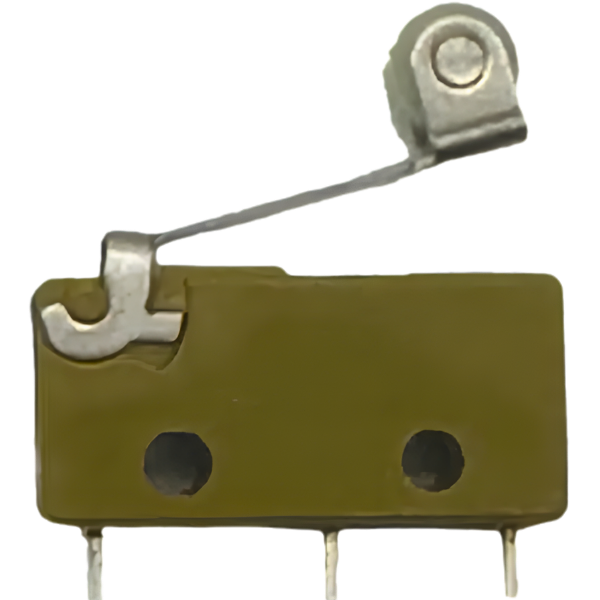

Detention Lock Motor Roller Switch for WLS-1520 Locks

Model: WL-6009
The WL-6009 is a replacement motor roller switch for WLS-1520 electromechanical detention locks. It supports the motor-control sequence and is used when servicing a compatible lock’s internal switching components.
Download Specs
Request Quote
Images may include optional components. Refer to specs for standard configuration.

Technical Overview

The WL-6009 is a model-specific roller-actuated switch in the WLS-1520 motor-control system. Correct positioning and adjustment are important to the lock’s operating sequence after the component is replaced.

Compatibility and Service

  • For compatible WLS-1520 lock configurations
  • Replacement motor-control switch
  • Confirm the installed lock model, wiring and switch position before ordering
  • Installation, adjustment and cycle testing should be completed by qualified service personnel

Downloads

Maintenance, Function & Feature Guide
Download
Product Guide
Download

Photo Gallery

These images capture the quality and craftsmanship you can expect in every purchase.

Images may include optional components. Refer to specs for standard configuration.

Compatible Products & Accessories

  • WL-7004

24VDC Motor Assembly for WLS-1520 Locks

  • WL-6004

Detention Lock Motor Harness for WLS-1520 Locks

  • WL-6011

Detention Lock Brake for WLS-1520 Locks

Related Product Options

  • WLS-1520-EUKL

Electric-Unlock, Key-Relock Detention Lock

  • WLS-1520G

Electromechanical Swinging Detention Gate Lock

  • WLS-1520

8-Inch Jamb-Mounted Electromechanical Detention Lock

  • ASTM F1450 Certified, ASTM F1577 Certified, UL 1034 Listed, UL 10C Listed

Specifications

  • Model
  • WL-6009
  • Category
  • Parts
