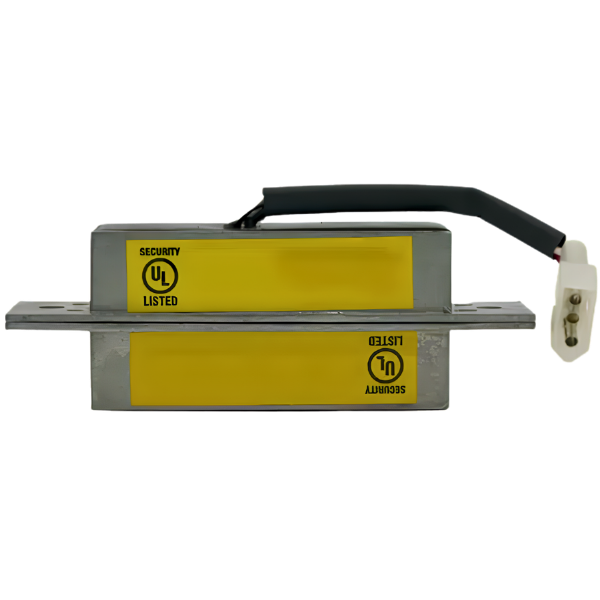

Magnetic Door Position Switch

Model: WLS-DPS
The WLS-DPS is a magnetic door-position switch that tells a security control system when a door is closed. It is used in detention and controlled-access openings where accurate door status is needed for secure indications or interlocked door operation.
Download Specs
Request Quote
Images may include optional components. Refer to specs for standard configuration.

Technical Overview

The WLS-DPS is a magnetically actuated, mortise-mounted door-position switch for institutional lock-control systems. It confirms the physical closed position of the door so the controls can issue a secure indication or permit another controlled opening to operate.

Technical Details

  • Secure, impact-resistant construction
  • Stainless steel body
  • Magnet and sensor assembly
  • Mortise-mounted configuration
  • Must be used with a lock-status switch (LSS) to distinguish door position from lock-bolt status and provide accurate open/closed monitoring

Downloads

WLS-DPS Specification Sheet
Download
Maintenance, Function & Feature Guide
Download
Product Guide
Download

Photo Gallery

These images capture the quality and craftsmanship you can expect in every purchase.

Images may include optional components. Refer to specs for standard configuration.

Compatible Products & Accessories

  • WLS-1520

8-Inch Jamb-Mounted Electromechanical Detention Lock

  • ASTM F1450 Certified, ASTM F1577 Certified, UL 1034 Listed, UL 10C Listed
  • WLS-1300

Narrow-Jamb Motorized Deadlocking Latch with Key Cylinder

  • WLS-1520G

Electromechanical Swinging Detention Gate Lock

Related Product Options

  • WSH-4545E

Stainless Steel Wire Pass-Through Security Hinge

  • WLS-DPS-MS

Surface-Mounted Mechanical Door Position Switch

  • WLS-2010

Stainless Steel Electronic Key Switch

Specifications

  • Model
  • WLS-DPS
  • Category
  • Door Position Switches
