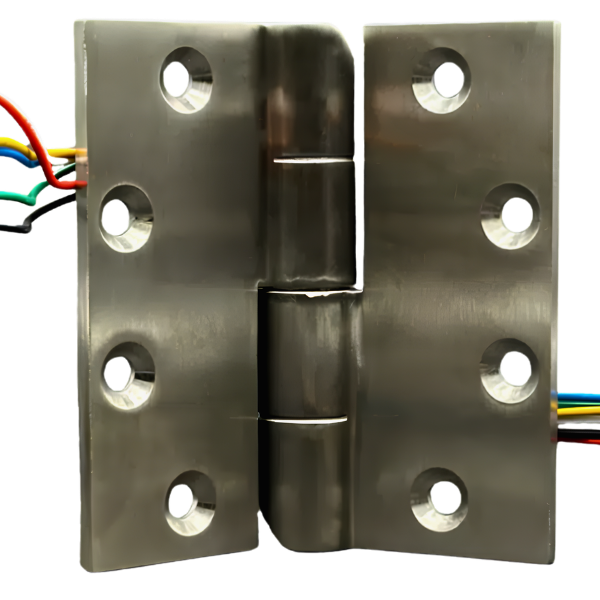

The WSH-4545E combines a cast stainless steel full-mortise hinge with a protected wire pass-through for electrified door hardware. Security studs, tamper-resistant fasteners and anti-friction bearings support demanding door service while keeping conductors concealed at the hinge line.
Technical Details
- Cast 304 stainless steel with brushed finish
- 4-1/2″ x 4-1/2″ x 3/16″
- Full-mortise design with security studs
- ANSI/BHMA A156.7 hinge pattern
- Anti-friction, wear-resistant bearings
- Internal wiring pass-through
- 1/4-20 security Torx screws provided
- Existing product data specifies use on door assemblies rated up to 300 lb
